Wood core panels are designed for professional raised flooring systems with chip / particle board core, steel encapsulation, antistatic top finish and reliable load performance.
The design focuses on durability, corrosion resistance, clean surface finish, improved edge strength and easy accessibility for modern commercial and technical flooring applications.
These panels support professional environments that require organized flooring infrastructure, reliable panel performance and long-term serviceability.
Wood Core Product

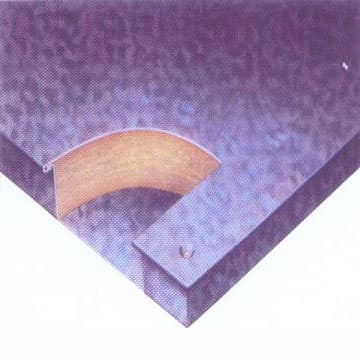

Panel is manufactured from pressed formed corrosion-resistant galvanized steel with overlap of one-piece top, sides and bottom flange, encapsulating high-performance chip / particle board.
These access floor panels are fully rated to all general-purpose requirements. The design incorporates a unique wrap-around construction which provides total encapsulation of board core. The design also improves panel edge strength and accessibility.
Specifications
Load Specifications
| Panel Type | EWP-F28 | EWP-F32 | EWP-F38 |
|---|---|---|---|
| Point Load | 3.6 KN | 4.5 KN | 5.6 KN |
| UDL (Kg/M²) | 1000 | 1100 | 1200 |
| Impact Load | 46 KN | 56 KN | 66 KN |
| Rolling Load | 2.7 KN | 3.6 KN | 5.6 KN |
| Ultimate Load | > 8 KN | > 10 KN | > 12 KN |
Wood Core Product
The floor panels are based on a 600 mm square module construction around a high chip / particle board which is bottom laminated with galvanized steel foil.
The appropriate surface covering is then laminated to the top surface before being trimmed to fit flush with a polymer edge band that provides protection to the chip / particle board core and surface covering.
Electrical continuity is provided through the panel construction to the steel base and hence to the pedestals.
Specifications
Load Specifications
| Panel Type | EWP-F28 | EWP-F32 | EWP-F38 |
|---|---|---|---|
| Point Load | 3.6 KN | 4.5 KN | 5.6 KN |
| UDL (Kg/M²) | 1000 | 1100 | 1200 |
| Impact Load | 46 KN | 56 KN | 66 KN |
| Rolling Load | 2.7 KN | 3.6 KN | 5.6 KN |
| Ultimate Load | > 8 KN | > 10 KN | > 12 KN |
Product Benefits
ESSCON wood core panels are designed for dependable performance, clean installation, stable surface finish and professional raised floor applications.
600 × 600 mm² and 600 × 800 mm² options.
Antistatic laminate / PVC finish for professional use.
Available in 28 mm, 32 mm and 38 mm thickness.
